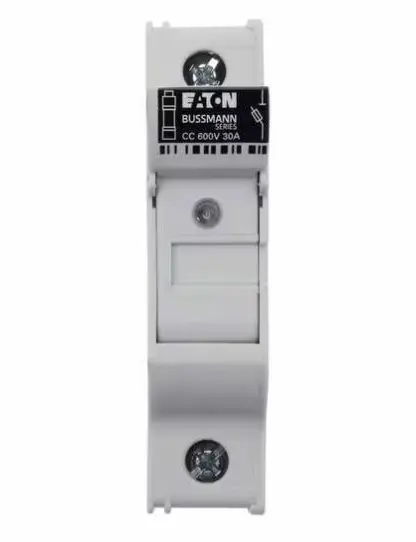

Finger-Safe Fuse Block, Body Material Thermoplastic, Compatible Fuse Series ATDR, ATMR, ATQR, CCMR, FNQ-R, KLDR, KLKR, KTK-R, LP-CC, Clamp/Spade Lug, Amp Range 0 to 30 A, Fits Fuse Type Class CC, For Fuse Size 1-1/2 in L x 13/32 in dia, Fuse Block Design Finger-Safe, Nonrejection, Height 2.91 in, Length 2.44 in, Mounting Style DIN Rail, Number of Poles 1, Standards UL Listed, Visual Indication Indicating, Voltage Rating 600V AC/300V DC, Width 0.69 in, Wire Range 18 to 4 AWG

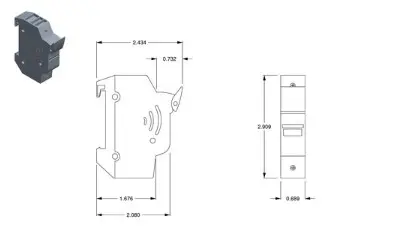

Dimensions
| Length | 2.44 in |
| Height | 2.91 in |
| Width | 0.69 in |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
Details
| CAD Available | Yes |
| Item | Fuse Holder |
| UL Class | CC |
| Series | CHCC |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Clamp/Spade Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Fuse UL Class | CC |
| Fuse Holder Code | W |
| Fuse Block or Fuse Holder Type | Finger Safe Fuse Block |
| Fuse Type | Industrial |
| For Fuse Series | FNQ-R, KTK-R, LP-CC |
| Standards | UL Listed |
| For Use With | For use with KTK-R, LP-CC and FNQ-R Class CC fuse |
| Wire Range | 18 AWG to 4 AWG |
| Fits Fuse Type | Class CC |
| Product Type | Finger-Safe Fuse Block |
| Max. Operating Temp. | 90 deg C |
| Weight | .22 lb |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Products By Industry | Electrical |
| For Fuse Class | CC |
| Max. Voltage | 600V AC/DC |
| Fits Fuse Block Style | Non-Rejection |
| Max. Amps | 30A |
| Fuse Block or Holder DC Voltage Rating | 300VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
